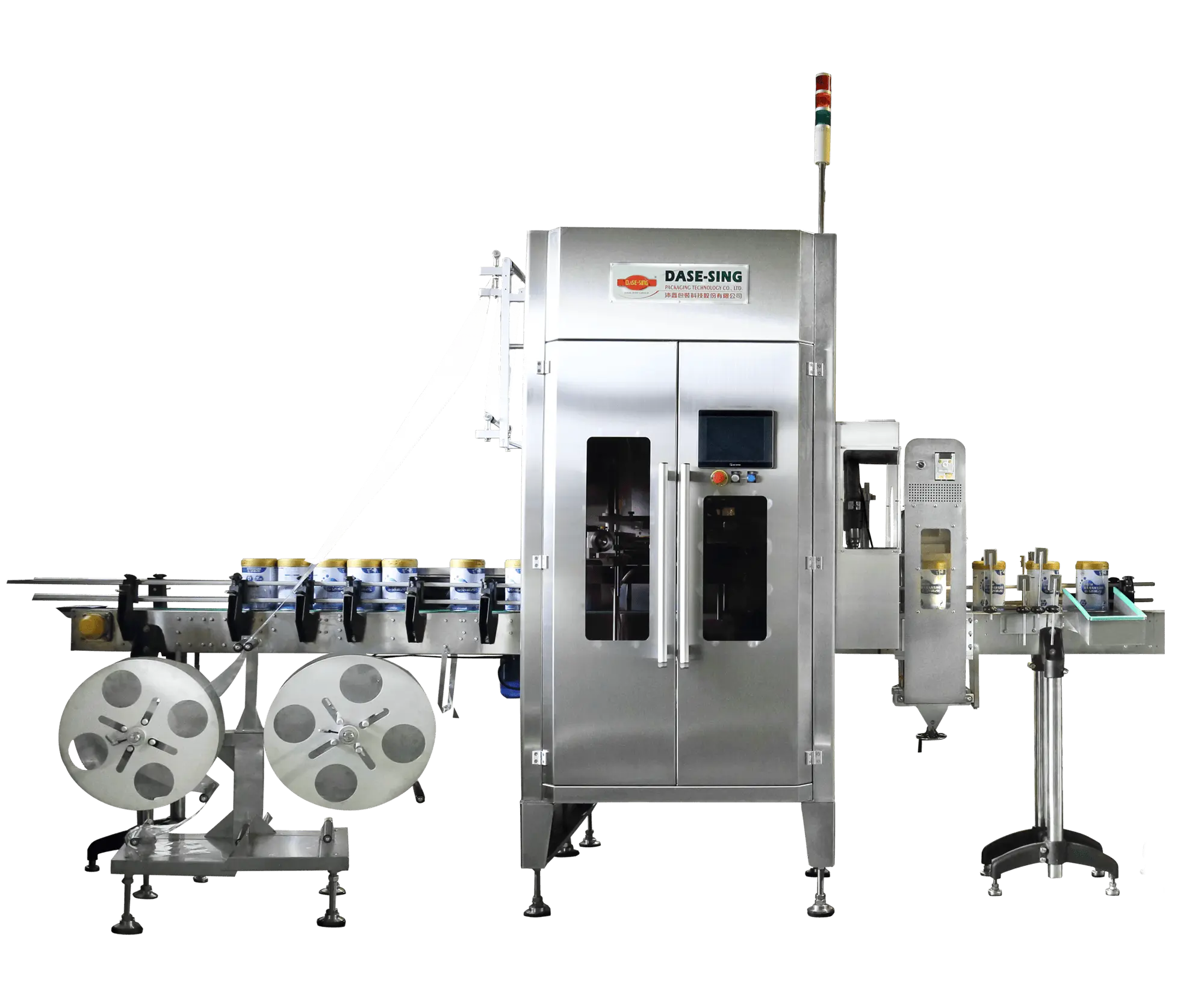

Wide Caliber DSK-2B (up to 150BPM)
A Wide Caliber sleeve labeler,Enclosed interference-free design effectively prevents foreign object intrusion, significantly enhancing production line stability.
Suitable for bottle type with bottle lip diameter of 135-200mm.
Max Speed : 150bpm.
Adopts dual drive system, interlink design and color-coded sensor for accurate and efficient identification.
Specifcation
Low speed
Sleeve gauge >30 micron
Standard change over
| Max speed | 150BPM |
|---|---|
| Bottle Diameters | Ø135mm~Ø200mm (Based on the bottle dimension of specification provided by the customer) |
| Film Material | PVC /PET /OPS |
| Film Width | PVC: 0.04mm~0.05mm |
| Machine Size | 1100mm*1180mm*2000mm(L*W*H) (Dase-Sing reserves the right to mofify the apperarance and dimension of the machine, in order to optimize the fuction of the requirement) |
| Voltage | 3P;220V (According to customer requirement) |
Based on research improvement necessity, DASE-SING reserves the right to revise the machine design and specification without any notice.
Machine Features
- Cutter plate and drive are using Yasukawa drive system and server motor for motion with stable and accurately.
- Machine design can fit the bottle diameter from 135mm to 210mm.
- Dual drive design for motion with stable and accurately.
- Cutter plate is driven by gear for longer using and perfect cuts.
- Drive and front/ rear blocking use linkage arrangement to make the position of mandrel more accurate.
- Feeding roller with cam design to reduce the time of sleeve installation.
- Seven inches HMI touch screen has highly sensitive operation by collocate with High Performance motion control system to make the operation more convenient.
- Sensors are using SICK grade for motion of sleeve more stable and accurate.
Innovative Features
- Adopts dual drive system, interlink design and color-coded sensor for accurate and efficient identification.
