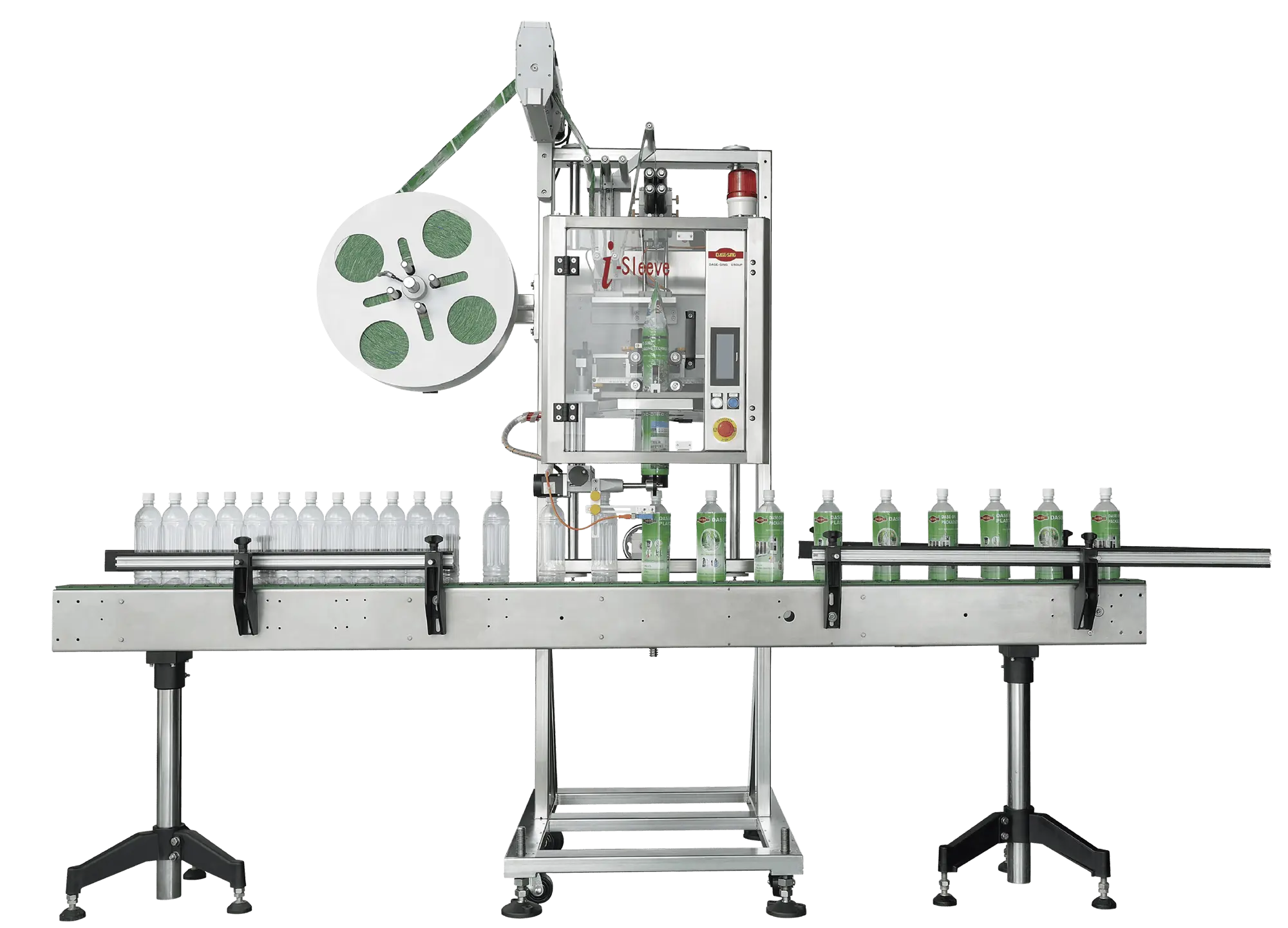

Single-head i-Sleeve (up to 150BPM)
i-Sleeve Single-Head Applicator: 150BPM Compact Labeling Solution(as low as 2.5M*) Featuring an ultra-thin cutter head and unique transmission design, the i-Sleeve ensures easy adjustment and maintenance. Its compact footprint is ideal for saving factory space on low-to-medium speed production lines.
*depending on the customer's conveyor height
Specification
Low speed
Sleeve gauge >30 micron
Standard change over
| Max speed | 150BPM |
|---|---|
| Bottle Diameters | Ø25mm~Ø125mm (Based on the bottle dimension of specification provided by the customer) |
| Film Material | PVC /PET /OPS |
| Film Width | PVC：0.035mm~0.08mm, PET：0.04mm~0.06mm,OPS：0.04mm~0.06mm |
| Machine Size | 730mm*860mm*1900mm(L*W*H) (Dase-Sing reserves the right to mofify the apperarance and dimension of the machine, in order to optimize the fuction of the requirement) |
| Voltage | 3P;220V (According to customer requirement) |
Based on research improvement necessity, DASE-SING reserves the right to revise the machine design and specification without any notice.
Machine Features
- Can be fully integrated within production line.
- Safety guards and touch panel control system ensure unit is user friendly.
- Specially designed cutter plate does not need changing within rated specifications.If necessary, changes can be accomplished in only three minutes.
- Forceful insertion design could lower production costs for you.
- Integrated adjustment design for the entire transmission maximizes versatility for accommodating different label specifications.

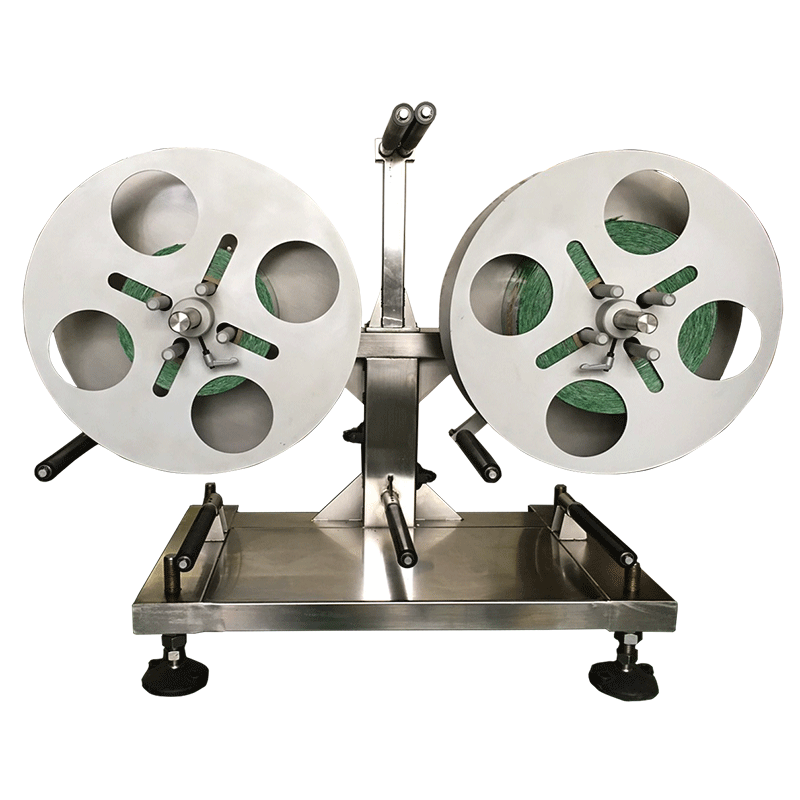

- Accommodates film paper core size from 5"-10" with variable adjustments.
Innovative Features
- Slim cutter plate design, with fixed drive belt tension design, for easy adjustment and maintenance.
- Manual up and down spiral design for easy adjustment. Adjustment range is wider than traditional machines.
- With unique drive transmission structure, designed for easy usage.
- Machine only uses 3 timing belts for easy maintenance.
- Adopts separate conveyor design, which can easily be integrated within any production line.
