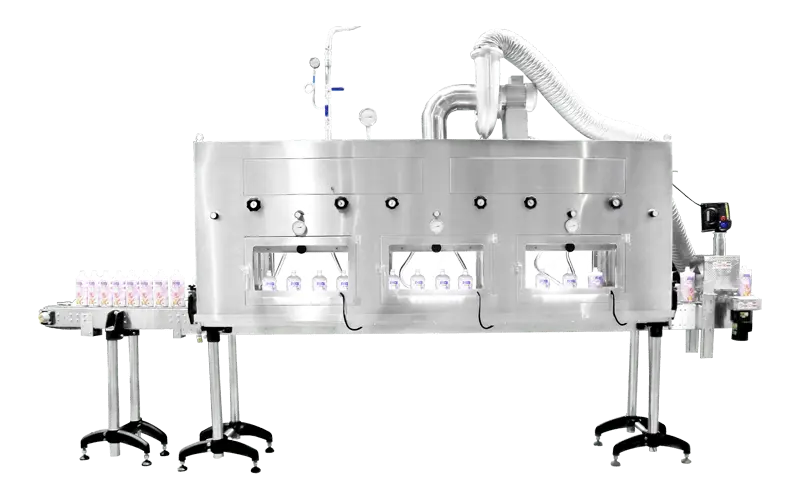

Steam shrink sleeve tunnel AST-128B (2.8m, 0.75kW)
DASE-SING AST-128B Steam type shrink packaging is used to tightly fit the film material on to the container. Suitable for various bottle types and sizes.
Specification
High speed
Steam heating
Length 2.8M
| Power source | 3P/ 220V~440V |
|---|---|
| Machine dimensions | 2800L x 520W x 1600H mm |
| Tunnel dimensions | 2800L x 170W x 420H mm |
| Host horsepower | 0.75kw |
| Steam inlet pressure | 0.5~2 kg.cm2 |
| Steam consumption | 100 ~ 200 kg/hr |
| Observation window | Yes |
Based on research improvement necessity, DASE-SING reserves the right to revise the machine design and specification without any notice.
Machine Features
- With stainless steel frame of rigid and durable construction, suitable for most working environments.
- Configuring tempered glass window, easy to view interior circumstances.
- Adjustable steam nozzles position with tilt angles , vertically and horizontally for all shrinking requirements.
- The user-friendly adjustment for the valve is set on the outside of the machine.
- Maximum steam volume:200kg/hr
- Steam pressure:0.5~2kg
- Optional international brand valve, for better quality and stability steam production.
