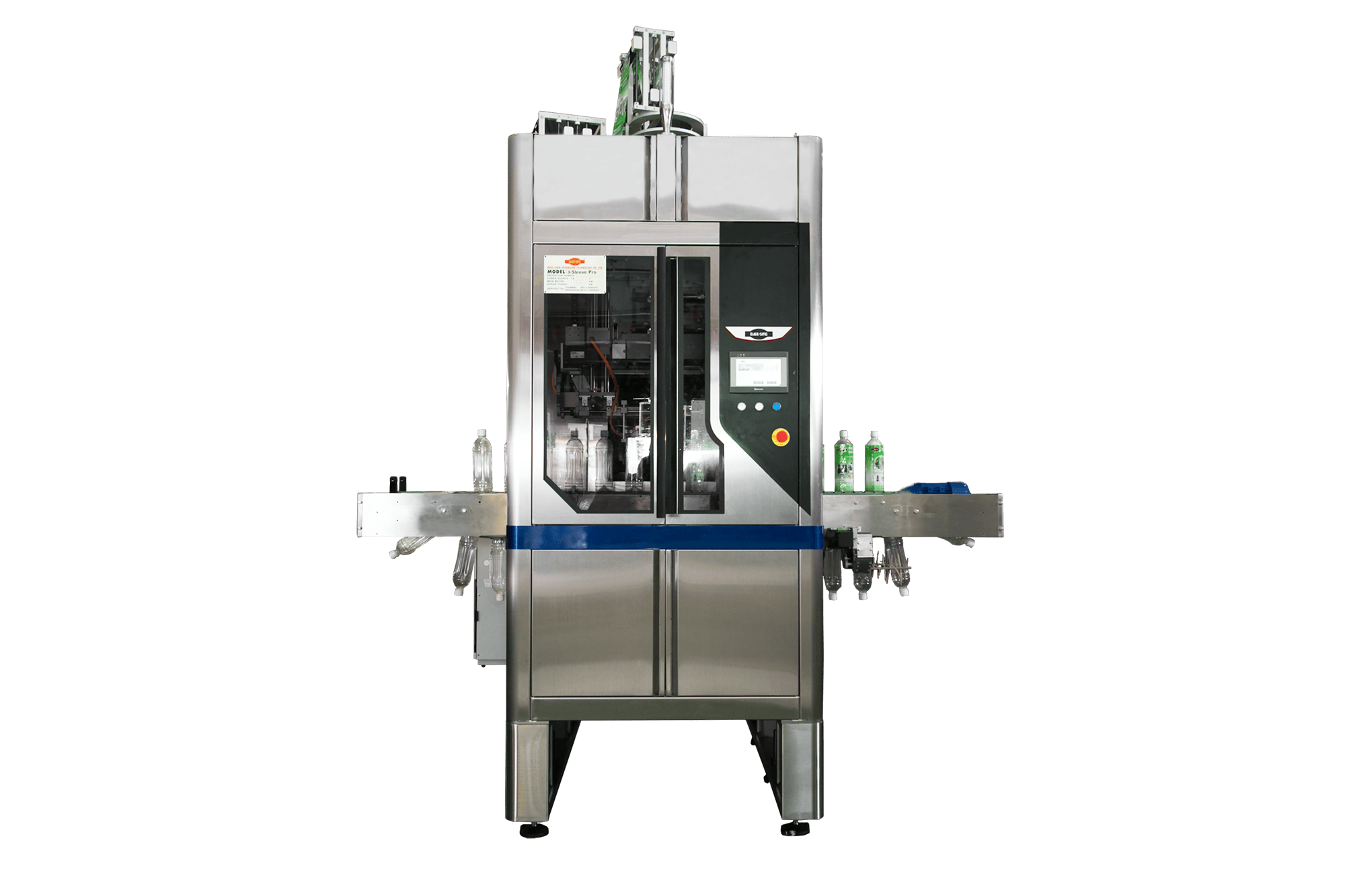

Single-head i-Sleeve Pro (up to 600BPM)
This Shrink Sleeve Labeling Machine is developed for customers who need high efficiency and high speed, and also need a small footprint.
i-Sleeve Pro, it perfectly meet the customers’ need with simplified footprint and high capacity.
Specification
High speed
Sleeve gauge >20 micron
Quick change over
| Max speed | 600BPM |
|---|---|
| Bottle Diameters | Ø25mm~Ø125mm (Based on the bottle dimension of specification provided by the customer) |
| Film Material | PVC /PET /OPS |
| Film Width | PVC：0.032mm~0.07mm, PET：0.02mm~0.06mm,OPS：0.04mm~0.06mm |
| Machine Size | 2410mm* 1377mm* 2799mm(L*W*H) (Dase-Sing reserves the right to mofify the apperarance and dimension of the machine, in order to optimize the fuction of the requirement) |
| Voltage | 3P;220V,380V,415V,440V (According to customer requirement) |
Based on research improvement necessity, DASE-SING reserves the right to revise the machine design and specification without any notice.
Machine Features
- Can use Ethernet communication or dry contact I/O control during production.
- Safety guards and color touch panel control system ensure unit is user friendly.
- Specially designed cutter plate does not need changing within rated specifications. If necessary, changes can be accomplished in only three minutes.
- Use PC based control for increased accuracy and speed over conventional controls.
- Servo control adopts Ethernet communication which is less susceptible to interference.
Innovative Features
- Can save up to 100 sets menu.
- With optional UWI-8 Multi Label Unwinder, label changing time can be extended to increase productivity.
- Using PET 20 micron or PVC 32 micron shrink labels at substantial film cost reduction, machine can reach 350bpm within 180mm label length.
- Using PET/PVC 40 micron shrink labels, machine can reach 600bpm within 180mm label length.
- With auto speed variation insertion capability to meet conveyor requirement.
- Can be supplied with optional Bottle Lifter to produce quality packaging.
