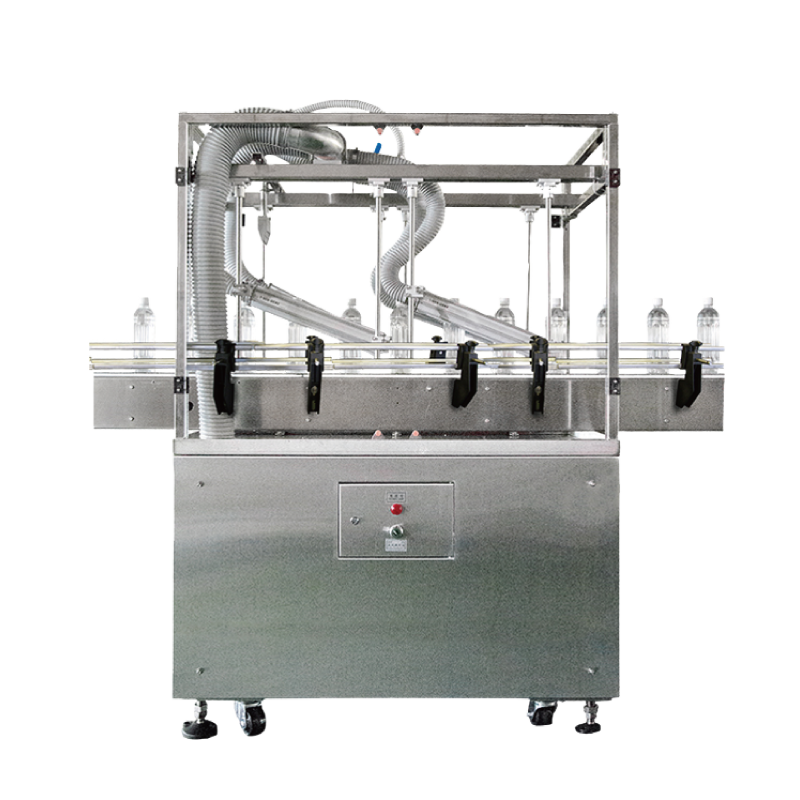

Air Knife Dryer DR-1200
Protection door: Use acrylic material to clearly see the inside contents.
Air knife tuyere: Can be adjusted the position of height and left and right. Can be used in any bottle type. The door installed to avoid water splashing.
Control box: Switch control and Air volume adjustment.
Water tray: The waste water will be collected and discharged.
Blower: Adopt 5.5KW annular high-speed blower, output maximum air volume of 10M³/MIN, motor protection adopts overload protection of national standard safety regulations, control button adopts user-friendly and simple operation, filter is installed at the air inlet of blower motor to prevent foreign matter from entering, around the protection cover Install soundproof cotton to eliminate noise.
Specification
Medium speed
Fixed blow
Length 1.2M
| Host Mechanical Dimensions (LxWxH) | 1230 x 670 x 1856 mm (Our company reserves the right to modify the machine’s dimensions for equipment optimization) |
|---|---|
| Bottle Materials | PET, HDPE, PVC, LDPE, Glass |
| Film Materials | PVC/PET/OPS |
| Power Consumption | Approx. 5.5 kW |
| Noise Level | 85 dB |
| Voltage | 3P / 380V (50/60 Hz) |
Based on research improvement necessity, DASE-SING reserves the right to revise the machine design and specification without any notice.
Machine Features
- Protective Cover Door: Utilizes transparent acrylic panels for clear observation of the products.
- Air Knives: The position of the air knives can be adjusted front and back, up and down, left and right, and in angle.
- Electrical Control Box: Switch control.
- Water Tray: Gathers wastewater for centralized discharge.
- Blower: Utilizes a circular high-speed blower fan.
