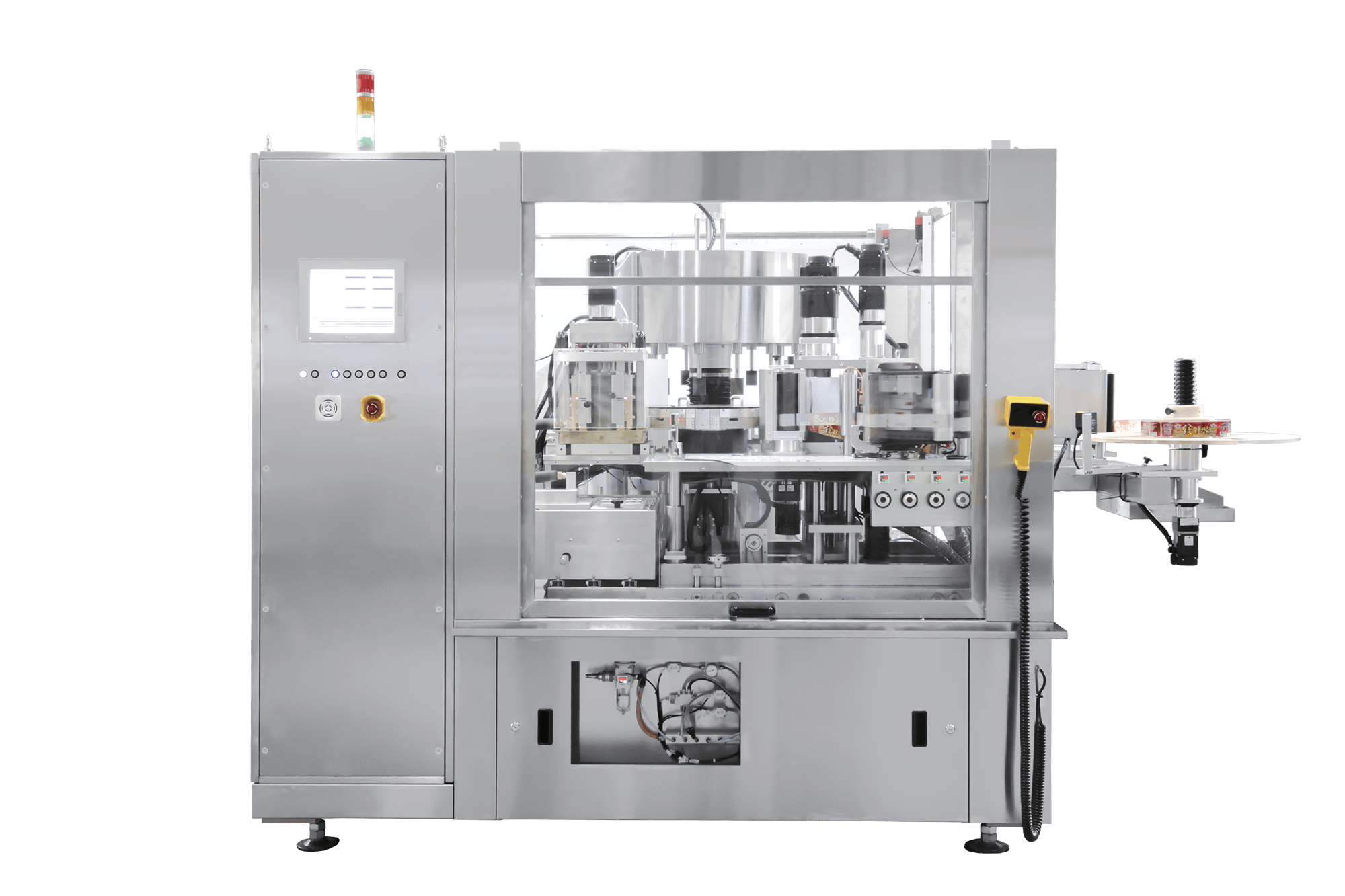

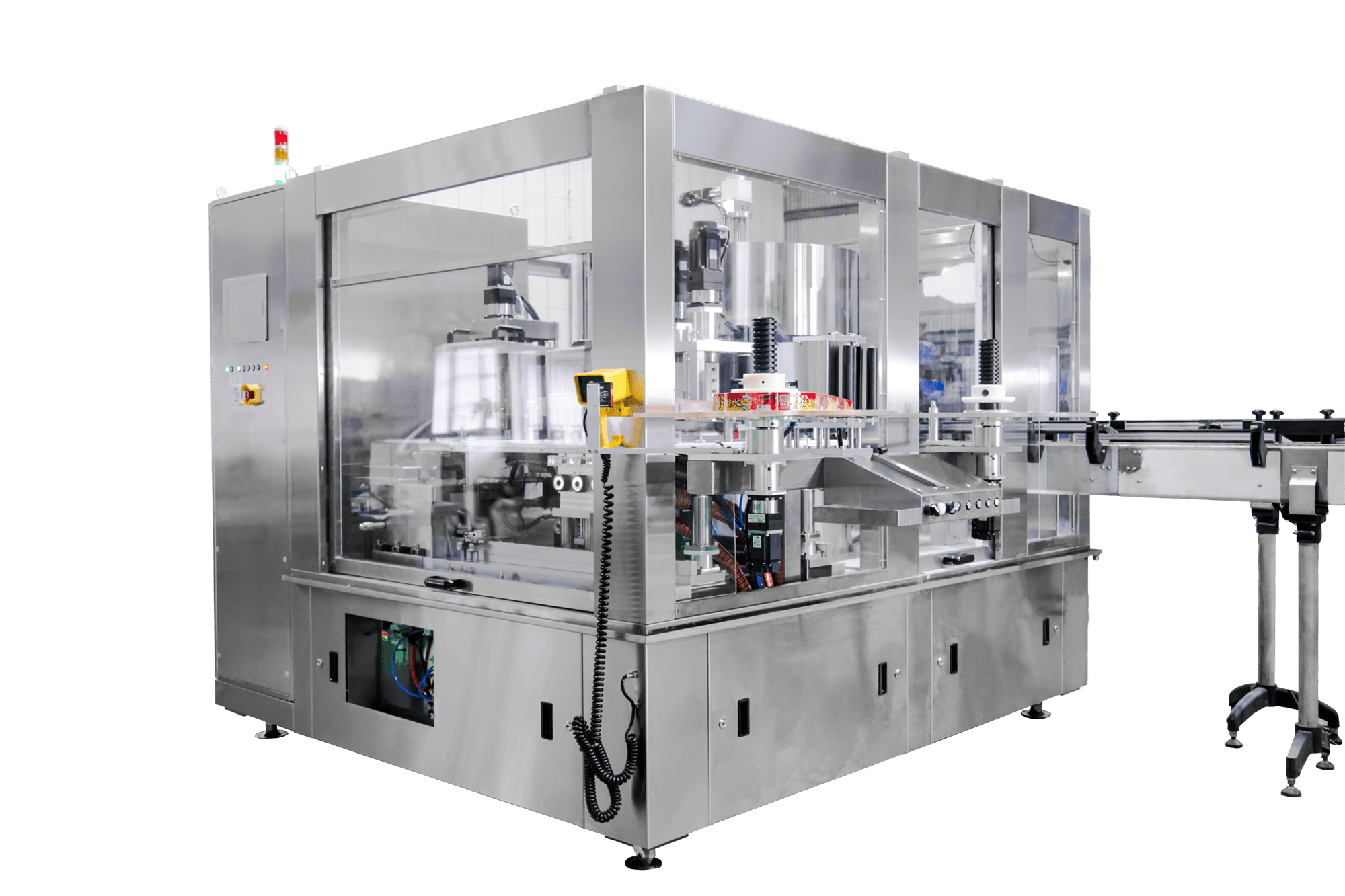

Labeling Machine i-Labeler(up to 700BPM)
- i-Labeler delivers a maximum speed of up to 700 BPM and is suitable for both round and square bottles.
- Equipped with a full servo seamless control system and a full-color touchscreen interface, it ensures smooth speed transitions and precise operation.
- The lightweight modular design allows for quick release and easy changeover, significantly improving operational efficiency.
- In addition, the continuous label supply system enhances production capacity, while the built-in equipment aging protection mechanism ensures long-term stable performance and easy maintenance.
Specification
High speed
Suitable for Standard bottles
Easy change over
| Power Source | 3P; 220/380V(According to customer requirement) |
|---|---|
| Max speed | 700BPM |
| Production Speed | *Round bottle below Ø70mm, up to 800pcs/min.48,000 bottles per hour |
| Label | Full roll label: paper roll diameter 6”, the maximum diameter Ø500mm |
| Container | Diameter:Ø50mm~100mm. the diagonal of the square bottle:500mm~100mm |
| Labeling Position | From the bottom of the bottle 15mm~165mm |
| Stickv glue | In the label before and atter the plastic width of 10mm |
Based on research improvement necessity, DASE-SING reserves the right to revise the machine design and specification without any notice.
Machine Features
- Maximum Speed: Up to 700 BPM
- Suitable for both round and square bottles
- Full-color touchscreen control panel
- Full servo seamless control system
- Smooth transition between high and low speeds
- Quick-release lightweight modular design
- Fast and easy changeover
- Continuous label supply for increased production efficiency
- Equipment aging protection system
- Easy maintenance
