Single-head DSL-250A (up to 250BPM)

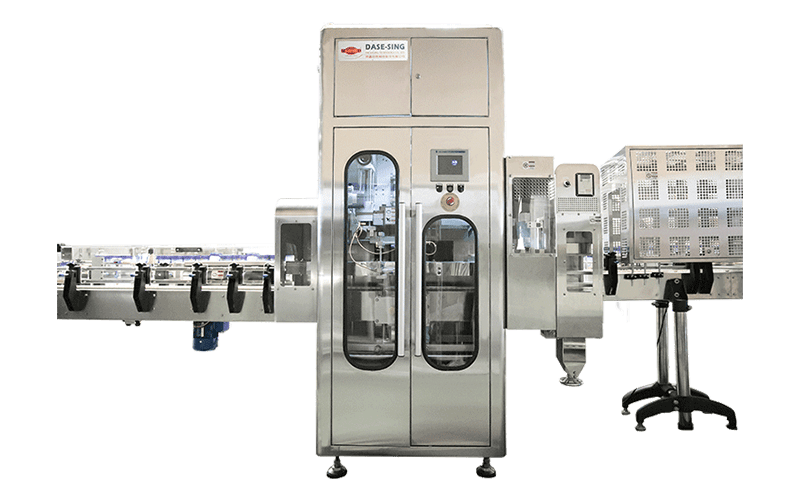

Single-head DSL-250A (up to 250BPM) DSL-250A
Single-head DSL-250A (up to 250BPM) DSL-250A

Maximize production efficiency with the DSL-250A Compact Shrink Sleeve Applicator. Operating at 250 BPM, this Allen Bradley-powered machine offers precise servo-controlled labeling for bottles Ø25–125mm. Robust, reliable, and easy to integrate into existing production lines.

Featuring quick sleeve changeover, an operator‑friendly touch panel, and multi‑protocol connectivity (EtherNet/IP, Profibus, DeviceNet), the DSL‑250A helps manufacturers improve efficiency while reducing downtime. Optional accessories, such as a ground label unwinder or perforation device, add flexibility for specialized applications, making it a reliable solution for modern packaging lines.

Specification

Low speed

Sleeve gauge >30 micron

Standard change over





Max speed250BPM
Bottle DiametersØ25mm~Ø125mm
(Based on the bottle dimension of specification provided by the customer)
Film MaterialPVC /PET /OPS
Film WidthPVC：0.035mm~0.08mm, PET：0.04mm~0.06mm,OPS：0.04mm~0.06mm
Machine Size900mm*897mm*2452mm(L*W*H)
(Dase-Sing reserves the right to mofify the apperarance and dimension of the machine, in order to optimize the fuction of the requirement)
Voltage3P;220V,380V,440V
(According to customer requirement)



Based on research improvement necessity, DASE-SING reserves the right to revise the machine design and specification without any notice.

Machine Features

  1. Multiple communications interfaces for DeviceNet, ControlNET, EtherNet/IP, Profibus DP and analog for increase system compatibility.
  2. No need to change the specially designed cutter plate within the rated specifications. Change of cutter plate in only three minutes.
  3. Color touch panel control system ensures machine is operator friendly.
  4. Forceful insertion designs can lower production costs.
  5. Integrated adjustment design for the entire transmission mechanism gives you the maximum convenience for accommodating different types of label specifications.
  6. Accommodates film paper core size from 5"-10" with variable adjustments.
  7. With unique programmed servo speed acceleration/deceleration curve, for reducing machine wear and tear to minimum level.
  8. Instead of conventional control, we adapt network based advanced communication fuzzy servo control system to increase accuracy and speed.
  9. No need to adjust label or bottle sensors when changing speeds.
